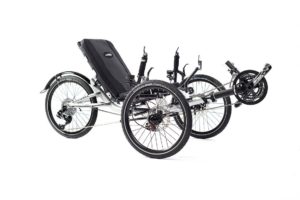

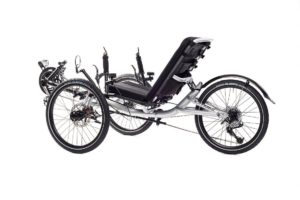

Catrike Villager

Description

Product Details

The Villager brings together engineering and innovation into one easy to use machine. A high seat and stable platform mated to an adjustable frame provide a comfortable and confident ride. Avid disc brakes offer best in class stopping power and Ackerman steering geometry – a standard design feature on all Catrike models – keep course corrections smooth and stable. The Villager is ideal for adventures in your neighborhood and beyond.

Standard Features:

Padded Seat with Ergonomic adjustable seat back
Self Centering steering with no Brake Steer
Ackerman Steering Compensation – Different turn radius for inside and outside wheel
Anodized Front Boom with adjustment scale
Quick-Release Indexing Boom Clamp
Aluminium Rod Ends
Low Friction PTFE Chain Tube

Included accessories and equipment:

Platform Pedals (one side) / SPD compatible clipless pedals (other side)
Left Mirror & mirror mount
Computer Sensor Mount
Rear Fender
Flag & Flag Mount
Proprietary Catrike Handrests
Parking Brake Levers
Built in Headlight Mount

Specifications

Brakes: Avid BB-7 Disc
Brake Levers: Catrike Locking Parking Brake
Front Derailleur: Microshift Triple
Rear Derailleur: SRAM GX 10-Speed
Shifters: SRAM 500 TT Bar End Shifter
Crankset: FSA Gossamer Pro Triple
Bottom Bracket: FSA Road MegaExo

Chainrings: 30/39/52
Chain Guard: FSA Guard
Cassette: SRAM 11/36 (10speed)
Chain: KMC
Idler: TerraCycle 15t Sport
Headsets: FSA Zero Stack
Front Tires: 20″ 406 Schwalbe Marathon Racer
Rear Tires: 20″ 406 Schwalbe Marathon Racer

Frame & Geometry

Total Length: 69in / 1753mm
Total Width: 34.5in / 876mm
Total Height: 28.5in / 724mm
Wheel Base: 38in / 965mm
Wheel Track: 31in / 787mm
Seat Angle: 47-58 Degrees
Weight: 34lbs / 15.4kg
Seat Height: 12.5in / 318mm
Seat Width: 14in / 356mm
BB Height: 17in / 432mm

Ground Clearance: 5.5in / 140mm
Height w/ Seat Folded: 24.5in / 620mm
Turning Circle: 16ft / 4.88m
Turning Radius: 8ft / 2.4m
Weight Limit: 275lbs / 125kg
Rider X-Seam Range: 39-46in / 99-117mm
Front Travel: N/A
Rear Travel: N/A
Folded Length: N/A
Folded Width: N/A
Folded Height: N/A

Catrike Shipping	Local Pickup, Regional Delivery
Frame Color	Atomic Orange, Candy Purple, Firefly Yellow

Catrike Shipping

Local Pickup, Regional Delivery

Frame Color

Atomic Orange, Candy Purple, Firefly Yellow

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Specifications

Brakes

Avid BB7 Disc Brakes

Brake Levers

Catrike Locking Brake Levers

Front Derailleur

Microshift Triple

Rear Derailleur

SRAM GX 10 Speed

Shifters

SRAM 500 TT Bar End Shifter

Crankset

FSA Gossamer Pro Triple

Bottom Bracket

FSA Road MegaExo

Chainrings

30/39/52

Chain Guard

FSA Guard

Cassette

SRAM 11/36 10 Speed

Chain

KMC

Idler

TerraCycle Sport POwer Idler 15T

Front Tires

406 Schwalbe Marathon Racer

Rear Tires

406 Schwalbe Marathon Racer

Frame & Geometry

Total Length

69 in

Total Width

34.5 in

Total Height

28.5 in

Total Weight

34 lbs.

Weight Limit

275 lbs.

Wheel Base

38 in

Wheel Track

31 in

Seat Angle

47/58 deg

Seat Height

12.5 in

Seat Width

14 in

BB Height

17 in

Ground Clearance

5.5 in

Height with Seat Folded

24.5 in

Turning Circle

16 ft

Turning Radius

8 ft

Rider X-Seam Range

39/46 in

Experience the power

The Bosch Active Line Plus electric-assist system features four levels of power assistance: Eco - 40%, Tour - 100%, Sport - 180% and Turbo - 270%. Each level also features a maximum drive torque to ensure smooth, gentle acceleration. The Bosch Active Line Plus delivers assistance up to 20 mph and a cadence of 105. Built for derailleur based drivetrains, it features gear shift detection to provide seamless power through the full range of gears.
