hase bikes kettwiesel evo e-bike delta trike

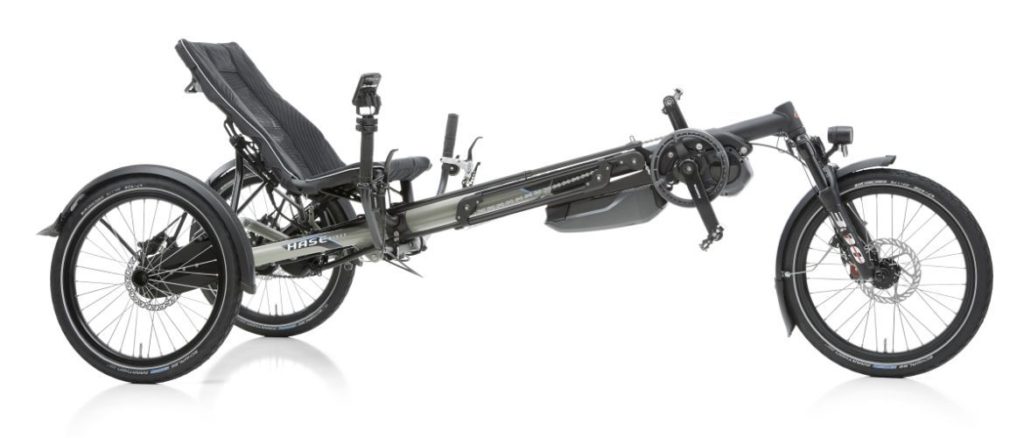

Hase Bikes Kettwiesel EVO STEPS 6100

The symbiosis of sportiness and comfort


E-trike for the discerning cyclist

As a recumbent trike with Shimano motor and sumptuous suspension, the KETTWIESEL EVO STEPS is a luxury-class delta.

The EVO STEPS is the luxury model of our KETTWIESEL series. Some may argue that the name “KETTWIESEL” is too whimsical for this classy set of wheels, but what’s named is named. Moreover, it’s long since become the epitome of a sporty, high end trike. The EVO STEPS is our upgraded version for riders with even higher standards for comfort: the standard model features a Shimano Steps motor and the corresponding Di2 electronic shifting system. Its suspension is out of this world: independent wheel suspension, air shocks, and cornering-stability control like a car. A sporty ride doesn’t have to be uncomfortable.

E-motor from Shimano: power on demand

It’s the rider who decides when the Shimano Steps switches on. Then the powerful mid-motor provides smooth and seamless assist. It gives you more traction on the rear wheels than a front motor, and its 504Wh battery, hidden behind the seat, can be fully charged in a mere four hours. The Di2 Alfine is an 8-speed, electronic, internally geared hub that coordinates perfectly with the motor. It can be operated in either manual or automatic mode. The rider can switch between these modes with the touch of a button on the display.

The Art of Unfolding

When parked upright, the EVO looks like a futuristic work of art. Just as impressive is the folded version: all it takes is three quick steps to transform the trike into a masterpiece of compactness with a maximum length of 38 inches (96 cm). Also foldable… and eye-catching: the KLIMAX Foldable Fairing, which is available as an accessory. The patented HASE BIKES fairing waits – compactly folded – in its carrying case for the next rainy day when it can be mounted and unfolded in a flash. With the corresponding Rain Poncho, it turns the EVO into a weatherproof, all-season trike.

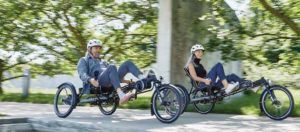

Recumbent trike + recumbent trike = 5-wheel tandem

The delta configuration – one wheel in front and two in the back – offers an exceptionally sporty performance: not only because the turning radius is very small, but also because the low center of gravity guarantees excellent safety and stability – even when cornering at high speeds. The ride is twice as sporty – and will attract twice as many curious stares – when you connect two trikes with the HASE BIKES Tandem Coupling.

  • Brakes

    Rear: Tektro Auriga Twin hydraulic disc brakes with integrated parking brake, Front: Avid BB7 mechanical disc brake with parking brake lever

  • Drive

    HASE BIKES Differential

  • Crankset

    Shimano Steps 170 mm 38 tooth

  • Bottom Bracket

    ​20½” (52 cm)

  • Front Tires

    Schwalbe Marathon 47×406

  • Rear Tires

    Schwalbe Marathon 47×406

  • Speeds

    Shimano Alfine Di2 8-speed internal gear hub with electrical manual or/and automatic shifting

  • Frame

    ​7046 Aluminum, HASE BIKES Folding Joint

  • Wheels

    20″, Hubs: HASE BIKES (rear), Rims: double wall with eyelets, Spokes: Sapim

  • Other

    Size When Folded – ​38″×35½”×19″ (96×90×49 cm) | Front Boom – 6061-T6 aluminum

  • Shocks

    ​HASE BIKES EVO independent wheel suspension with sway bar and HASE BIKES air shocks

  • Fork

    ​Suspension fork Spinner Grind 1

Frame & Geometry

  • Total Length

    69″-87″ (176-221 cm), without front wheel 60″ (153 cm)

  • Total Width

    ​35½” (90 cm)

  • Total Height

    ​32″ (82 cm), with seat folded down: 21″ (53 cm)

  • Total Weight

    71.7 lb (32.5 kg)

  • Weight Limit

    308 lb (140 kg)

  • Wheel Base

    ​52″-70″ (132-178 cm)

  • Seat Height

    20″ (50 cm)

  • Turning Circle

    ​32″ (82 cm), with seat folded down: 21″ (53 cm)

  • Other

    Hase Bikes EVO rear-wheel suspension | ​suspension fork Spinner Grind 1 | Lighting System – motor battery, B&M Toplight Flat Plus, Headlight: Busch & Müller Lumotec Lyt, LED, standlight | Fenders – SKS matt black

Standard Features

  • Agile and smooth riding
  • Low center of gravity, providing excellent safety and stability
  • Full suspension
  • Foldable
  • Usable in tandem and as a trailer
  • Shimano STEPS 6100 E-a
