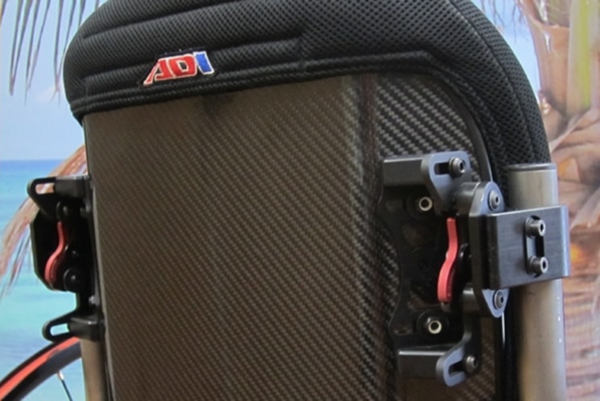

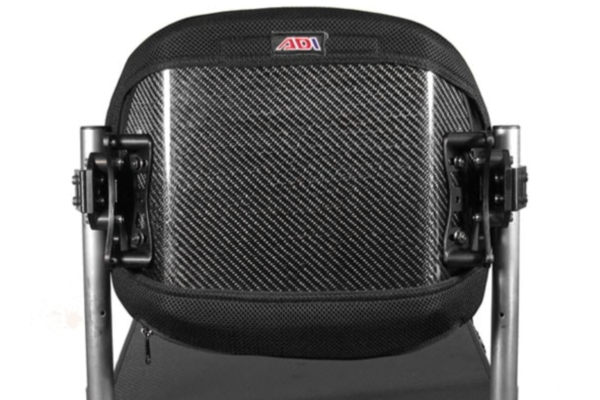

ADI Carbon Fiber Series Wheelchair Back Support

The Carbon Fiber Backrest by ADI is stylish and esthetically pleasing. It’s extremely lightweight, easy to install, comfortable, and supportive. It’s designed for active individuals who ride in ultralights, understand the importance of proper seating, and demand the best quality accessories to complement their wheelchair.

Product Details:

  • Stylish, Carbon Fiber Back Shell
  • Includes breathable, washable cover
  • Medium-density foam backrest pad
  • 2 depths & 3 heights to choose from
  • Fixed, quick release, or 2-point hardware
  • Weighs less than 3 lbs including hardware
  • Fits most ultralights

Technical Specs:

  • Fits chairs 13″ to 19″ wide
  • Active Contour: 2.5″ deep
  • Deep Contour: 4″ deep
  • Low: 10″ high
  • Medium: 13″ high
  • Standard: 16″ high
  • Carbon Fiber shell weighs only 27.44 oz
  • Weight capacity of 250 lbs
  • Warranty: 1 year

Frame & Geometry



There are no reviews yet

Add a review
Currently, we are not accepting new reviews

Additional information

Back Height

Low (10"), Medium (13") (Add $50.00), Standard (16") (Add $100.00)


13", 14", 15", 16", 17", 18", 19" (n/a with fixed Elite Hardware)

Contour Depth

Active Contour (2.5" Deep), Deep Contour (4" Deep)(Add $70.00)

Hardware Options

Quick Release (Removable/Adjustable), 2 Point (Adjustable/ Non Removable), Fixed Elite (Non Adjustable – N/A with 19" Width)
